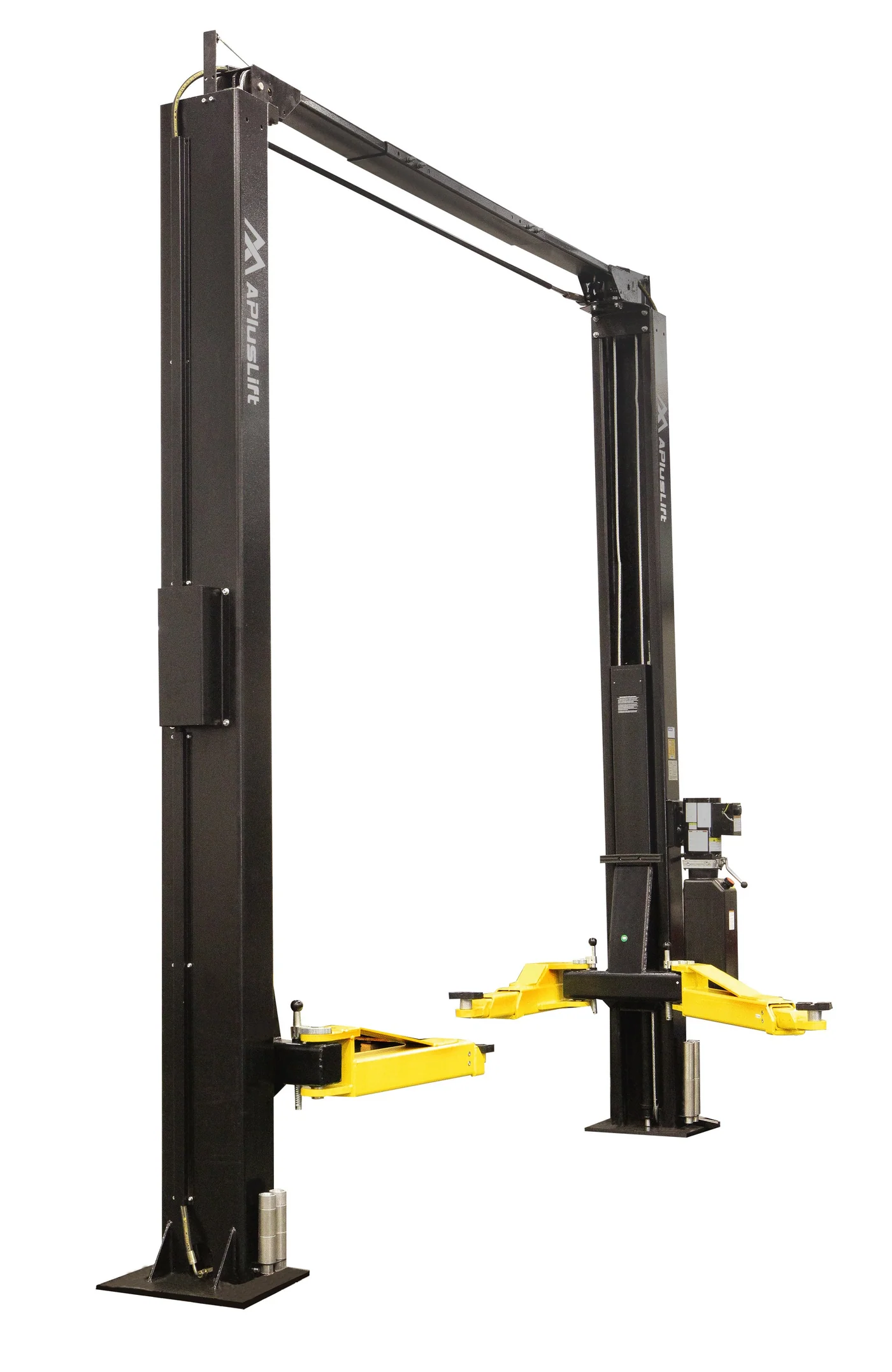

    ALI Certified Falcon 10,000LB 2-Post Overhead Single Release Direct Drive Car Lift with 3 Year Warranty

    • stores/eecd8e8f22193f6a204f57cbb9fcfee5/products/EZEjUNVwWeOhnY9Nu8fAueFgjbolYFuRhNCd2FNI.png
    • stores/eecd8e8f22193f6a204f57cbb9fcfee5/products/EZEjUNVwWeOhnY9Nu8fAueFgjbolYFuRhNCd2FNI.png
    • stores/eecd8e8f22193f6a204f57cbb9fcfee5/products/zIgLJDrvRYYPVxvIuyw5e18pSGmcIDMNJD2j8QDC.webp
    • stores/eecd8e8f22193f6a204f57cbb9fcfee5/products/fkfgCVieqIR9yl6cOY6CC4mrp1ABKhRhKE3Ouv7u.webp
    • stores/eecd8e8f22193f6a204f57cbb9fcfee5/products/JoElaQVOdvkxCmQfzIAywMtM1bxDaVhSR1scZIfx.webp
    • stores/eecd8e8f22193f6a204f57cbb9fcfee5/products/KpTAWC76DnoeFWc1QFI8OOfRefg4aPtuirP4MLKX.webp

    1499.99 $ 3899.99 $

    Hurry! only 5 left in stock!

    Real time 1 visitors right now.

    00 Day
    07 hour
    00 minute
    00 second

    Falcon TR-10C and TR-10CX models achieve the prestigious Gold Label for ALI Certification! This mark signifies rigorous testing and compliance with the toughest industry standards, and they satisfy all insurance company requirements. To learn more about the Automotive Lift Institute (ALI) and the ANSI/ALI/ETL Certification Program.

    Specifications

    ModelTR-10C and TR-10CX
    This Model    		AP-10SR
    for Comparison
    Manual
    • TR-10C/X Manual
    • Footprint
    • ALI Certificate
    		AP-10SR Manual
    CertificateALI CertifiedCE Certified
    Lock ReleaseSingle Point ReleaseSingle Point Release
    Warranty3 Years (36 months)3 Years (36 months)
    Lifting Capacity10,000 LB10,000 LB
    Overall Height
    • 143 3/4" (TR-10C)
    • 166" (TR-10CX)
    		143 3/16"
    Overall Width
    • 140 7/16" (narrow spacing)
    • 146 3/8" (medium spacing)
    • 152 1/4" (wide spacing)
    		134 5/16"
    Maximum Lift height with Truck Adapters78"81"
    Maximum Lift height without Truck Adapters69"75"
    Minimum Height of Adjustable Pads from Ground4"4"
    Drive Through Width (Carriage to Carriage)
    • 88 1/8" (narrow spacing)
    • 94 1/16" (medium spacing)
    • 100" (wide spacing)
    		100"
    Column to Column Width
    • 97 1/8" (narrow spacing)
    • 103 1/16" (medium spacing)
    • 109" (wide spacing)
    		109"
    Driving ModeDirect DriveChain Drive
    Motor220V Single Phase 3HP 10A (recommend a 30A breaker)220V Single Phase 3HP 10A (recommend a 30A breaker)
    Time to full rise50 seconds50 seconds
    Hydraulic Oil3-5 gallons AW32/AW46 (not included)3-5 gallons AW32/AW46 (Not Included)
    Truck Adapters3 sets: 1 1/2", 3", and 6" tall1 set: 4" tall

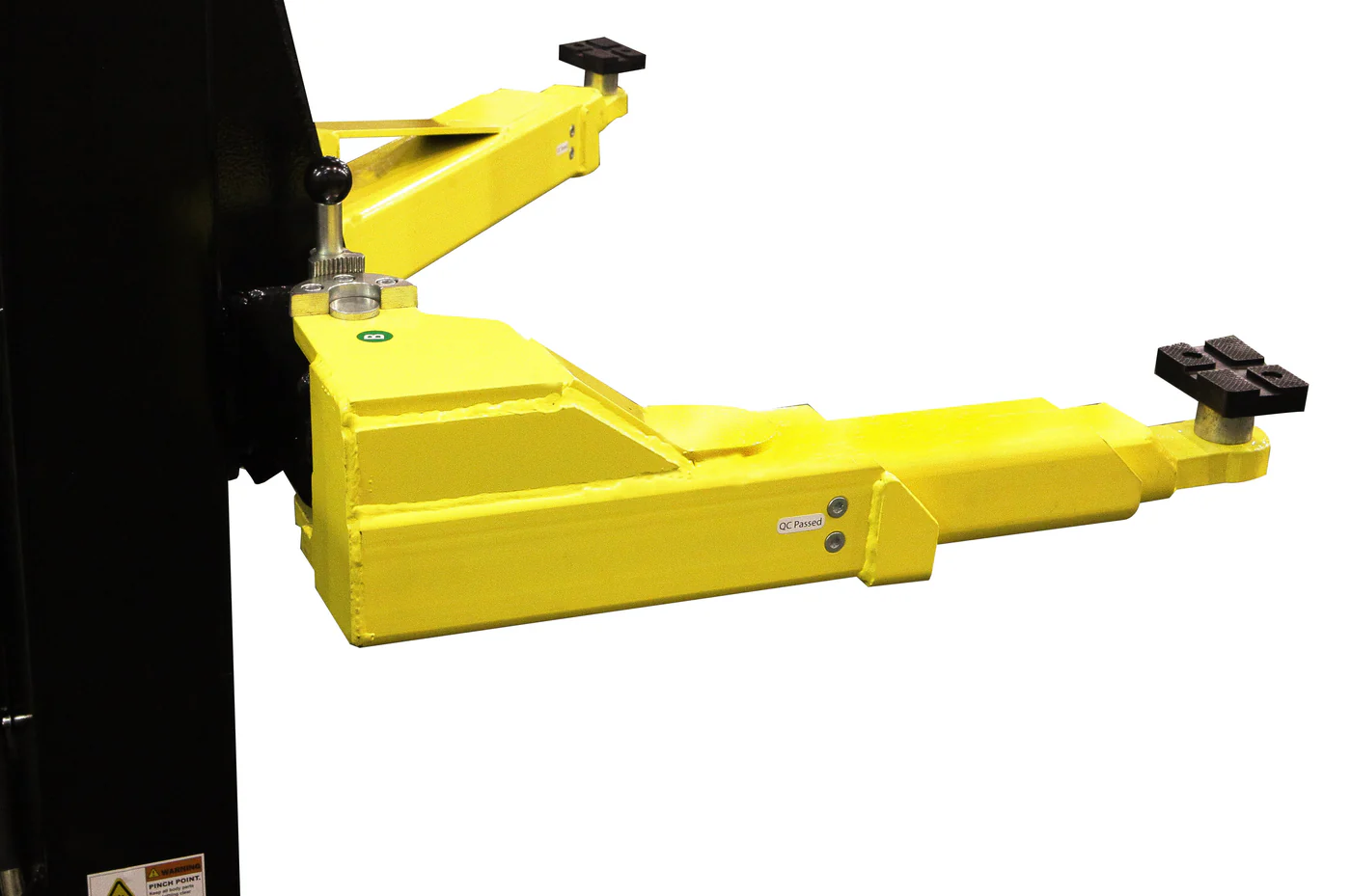

    Front Arms3 Stage reach from 19 5/16" to 41 7/8"3 Stage reach from 22 7/8" to 42 5/8"
    Back Arms3 Stage reach from 37 5/16" to 60 3/16"2 Stage reach from 33 5/8" to 52 7/8"
    Column Steel Thickness1/4"13/64"
    Carriage Steel Thickness1/4"15/64"
    Carriage Yoke Thickness9/16"9/16"
    Arm Steel Thickness1/4"15/64"
    Base Plate Steel Thickness13/16"5/8"
    Shipping Weight2000 LB and 200 LB (2 ft height extension for TR-10CX)1400 LB and 120 LB
    Shipping package size142"L x 22"W x 38"H and 30"L x 17"W x 17"H (2ft height extension for TR-10CX)113"L x 22"W x 40"H and 38"L x 17"W x 14"H
    Concrete Requirement6" thick at 3500 psi reinforced with fiberglass or steel (4" thick for vehicles 9000LB and below)
    ModelTR-10C and TR-10CX
    This Model    		AP-10SR
    for comparison


    Features

    • ○ Single-point safety lock release
    • ○ Automatic arm lock restraints

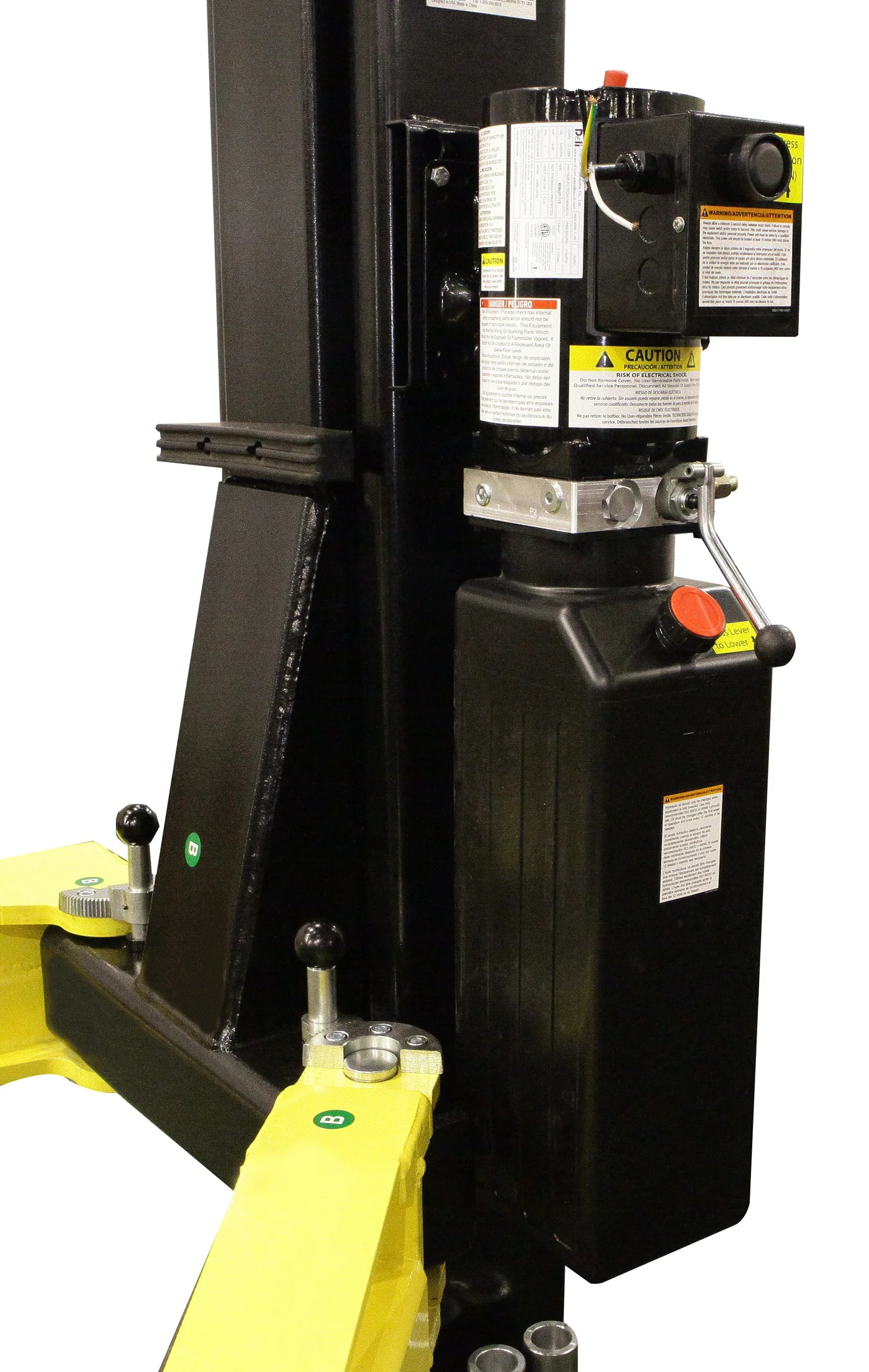

    • ○ Relief valve built-in power pump to prevent overloading
    • ○ Door guard protection rubber
    • ○ Up-limit switch to protect cylinders working stroke used in safe length scope
    • ○ Heavy duty 3/8" diameter cable and 5" pulley that reduce high stress on synchronization process and increase cable life
    • ○ Stiffened base plate 13/16" thickness
    • ○ Ultra-high molecular self-lubricating nylon slider that ensures carriage smooth moving up and down
    • ○ Lifting operation by pressing the "UP" button on the motor
    • ○ Manual lowering operation by pressing the lever
    • ○ Relief valve built-in power pump to prevent overloading
